12.1In 1500cd/M2 Ultra High Brightness Display -30 ~ 85 °C LVDS Tft Lcd Module G121EAN01.3

Model Number : G121EAN01.3

Place of Origin : China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-8 working days

Packaging Details : original factory packing

Size : 12.1inch

Resolution : 1280(RGB)×800, WXGA

Luminance : 1500 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Interface Type : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Operating Temperature : -30 ~ 85 °C

Storage Temperature : -30 ~ 85 °C

Backlight Life : 50K hours

Application : Industry Application

Contact Now

12.1Inch Resolution1280(RGB)×800 WXGA Luminance1500 cd/m² Operating Temperature: -30 ~ 85 °C LVDS Lcd Panel G121EAN01.3

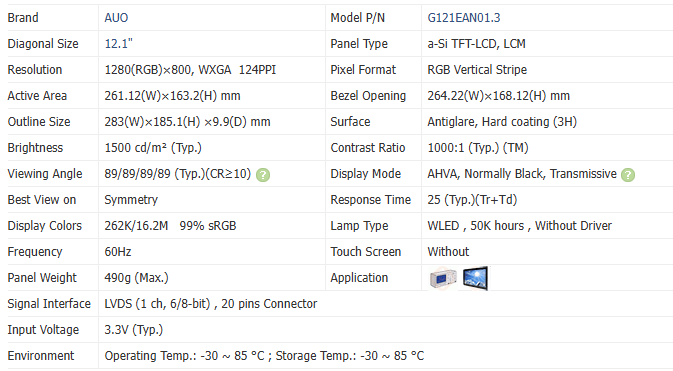

G121EAN01.3 is a 12.1" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to Industrial, Outdoor High Brightness etc.
